PRODUCT EXPANSION JOINT

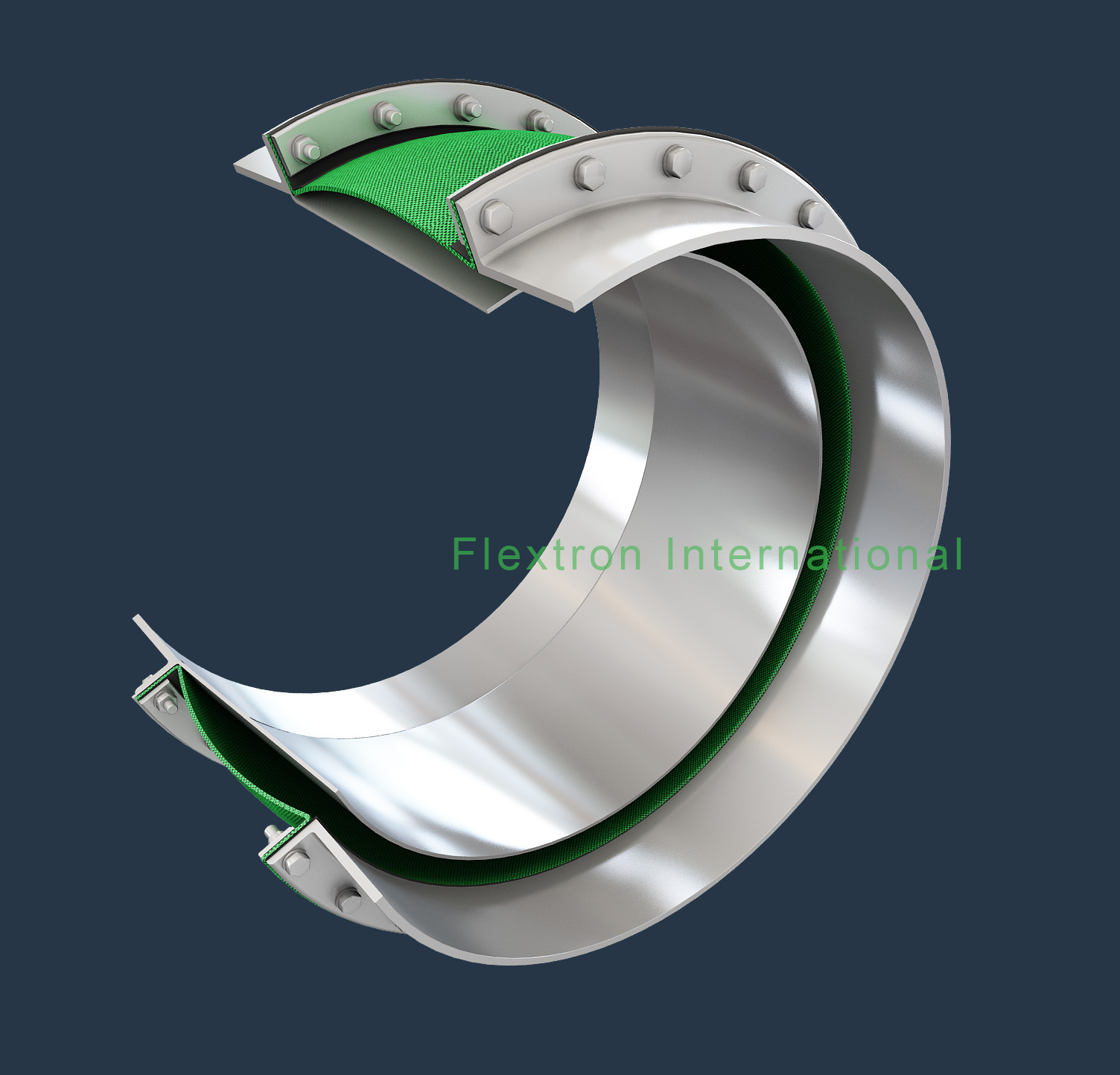

fabric expansion joint round duct

RO-UB-1L

Fabric expansion joint round duct type u-belt

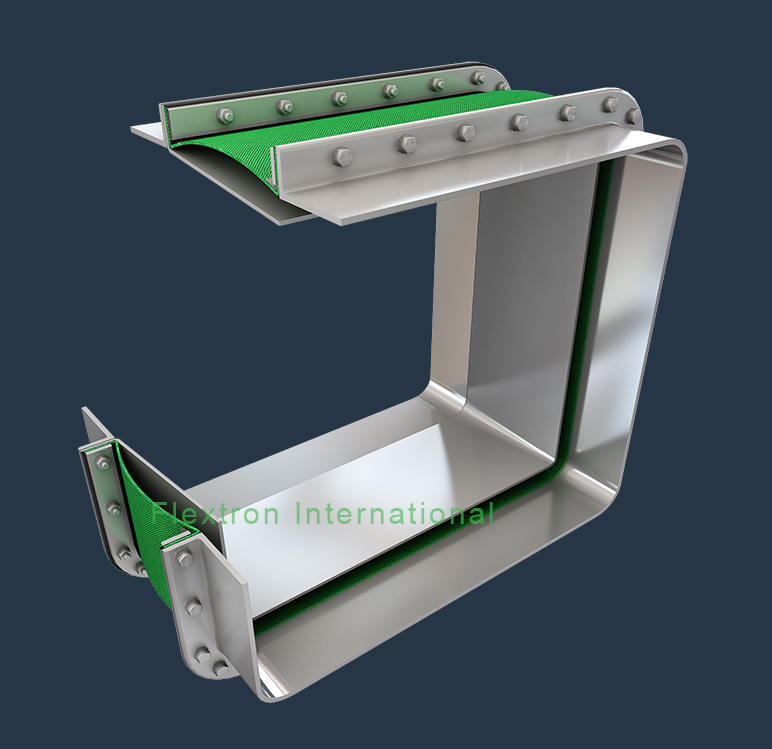

fabric expansion joint rectangular

REC-UB-1L

Fabric expansion joint rectangular duct type u-belt

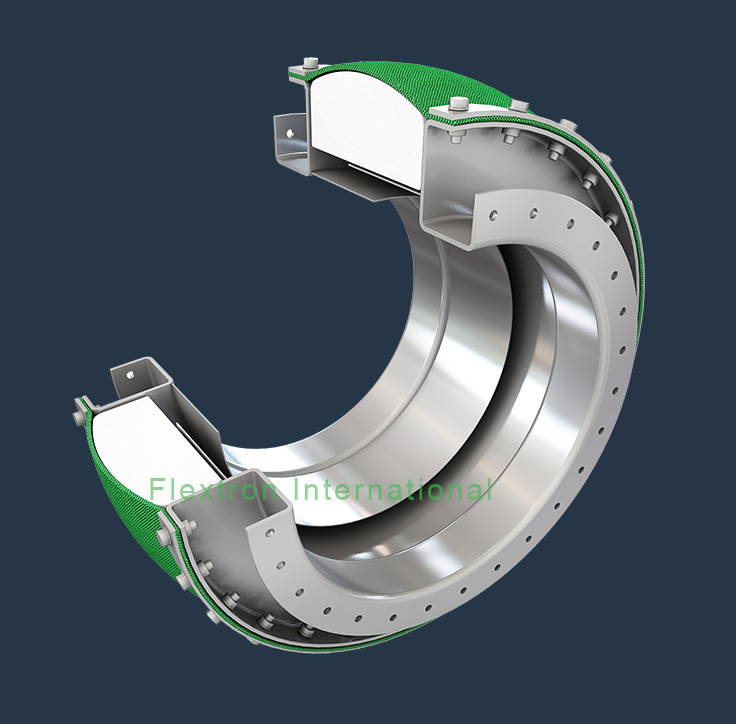

fabric expansion joint with cavity insulation pillow round duct

RO-FB-CIP-2FN-2L

Fabric expansion joint with cavity insulation pillow round duct type flat belt

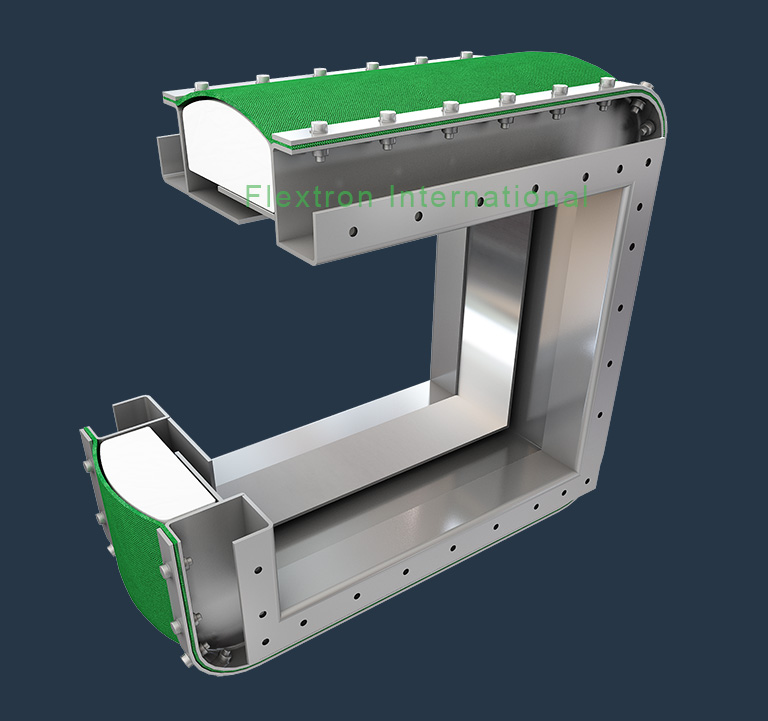

REC-FB-CIP-2FN-2L

Fabric expansion joint with cavity insulation pillow rectangular duct type flat belt

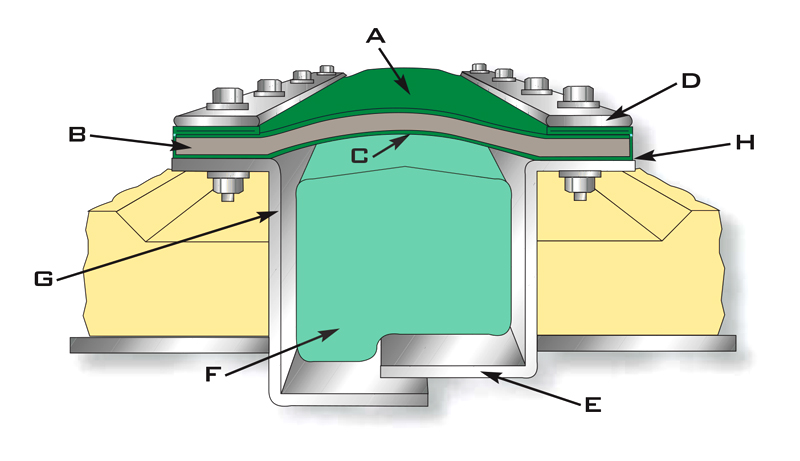

Function of fabric

FUNCTION  OF  FABRIC  EXPANSION

JOINT  COMPONENTS

               A.  GAS   SEAL  MEMBRANE

               B.  INSULATING  LAYERS

               C.  INSULATING  RETAINER  LAYER

               D.  BACK  UP  BARS

               E.  METAL  LINER  OR  BAFFLE

               F.  ACCUMULATION  BAG

               G.  FABRIC  ATTACHMENT  FLANGES

               H.  GASKET
